| Brand Name: | Nuoying JIAYE |
| Model Number: | NYCSUL-502 |
| MOQ: | 1 set |
| Price: | $150.00 - $350.00 |
| Payment Terms: | T/T |
| Supply Ability: | 300 units a month |

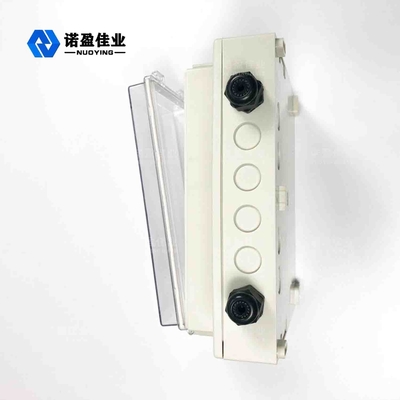

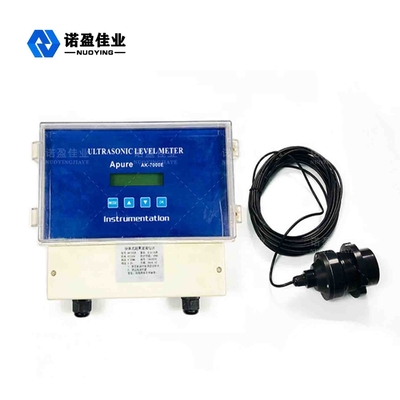

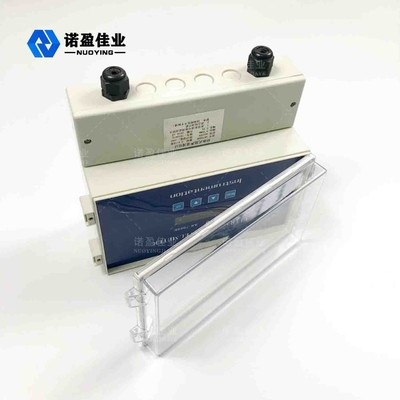

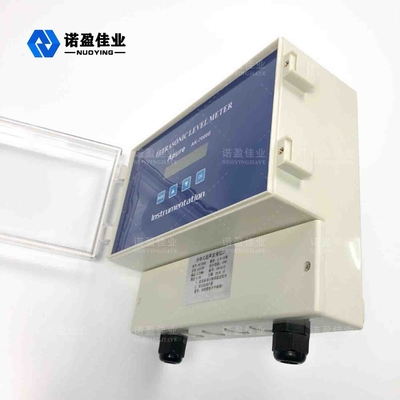

4-20Ma Rs485 Digital Ultrasonic Water Tank Float Liquid Level Gauge Meter Transmitter With Sensor
Ultrasonic Level Transmitter
1. a set of 4-20 ma analog output
2. four groups of relay switch output
3. RS - 485 communication (Modbus RTU protocol) (optional)
4. IP65 protection class
5. ac 220 v and 24 v dc power supply (optional)
6. installation: split type, instrument hanging installation
7. sensor material: ABS plastic (PE/PTFE anti-corrosion material optional)
8. sensor with 10 m line (can be extended to 50 m)
Ultrasonic Level Transmitter
| Product Name | Apure split diaphragm type 4-20ma 220V/24V cheap ultrasonic level meter |
| Measurement range | 0-20M (customized according to the actual situation) |
| Blind area | 0.25-0.5m |
| Ranging accuracy | ±3mm/0.3% (standard conditions) |
| Pressure | 3 under atmospheric pressure |
| Instrument type | Split type |
| Range resolution | 1mm |
| Ambient temperature | -20℃~+60℃ |
| Meter display | Built-in LCD display level or space distance |
Ultrasonic Level Transmitter Installation Considerations
1) meter installation is recommended to install the outdoor sun visor to extend the life of the instrument.
2) wire, cable protection pipes, pay attention to sealing to prevent water.
3) While the instrument itself with lightning protection devices, but the instrument in a multi-mine area, it is recommended in the instrument into the outlet end of the additional Install a dedicated lightning protection devices.
4) instrument in particularly hot, cold places, that the ambient temperature may exceed the job requirements of the instrument, it is recommended around the level meter plus high fortification, low temperature devices.
