| Brand Name: | NUOYINGJIAYE |
| Model Number: | NYCSUL-501 |
| MOQ: | 1pc |
| Price: | $135.0~$225.0 |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/pre month |

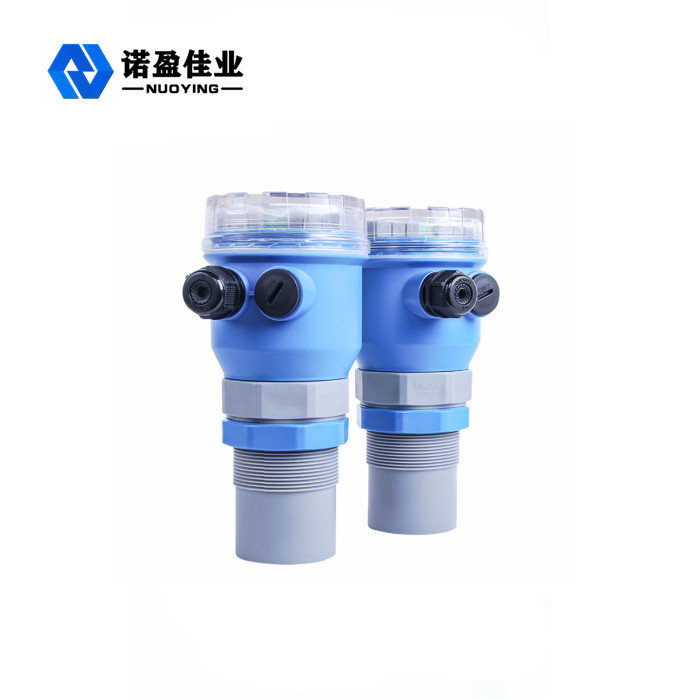

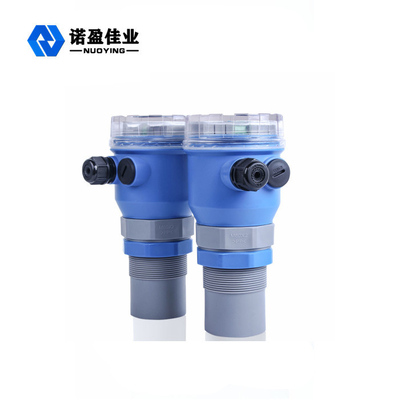

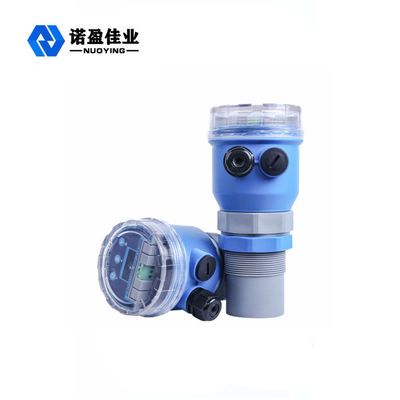

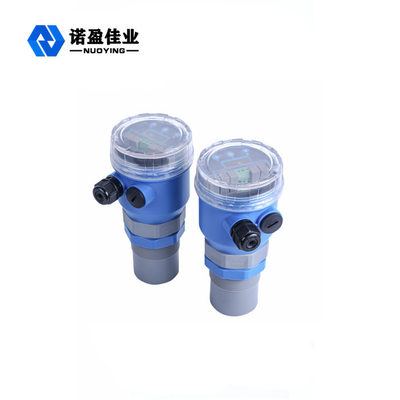

Rs485 Ultrasonic Water Tank Level Sensor Ultrasonic Solid Liquid Level Transmitter
Rs485 Ultrasonic Water Tank Level Sensor Ultrasonic Solid Liquid Level Transmitter Description:
Ultrasonic level transmitter has no moving parts, and it can measure level without making physical contact with the object. This typical characteristic of the transmitter is useful for measuring levels in tanks with corrosive, boiling and hazardous chemicals. The accuracy of the reading remains unaffected even after changes in the chemical composition or the dielectric constant of the materials in the process fluids.
Rs485 Ultrasonic Water Tank Level Sensor Ultrasonic Solid Liquid Level Transmitter Parameters:
| Range | 5, 8, 10, 12, 15, 20m |
| Blind zone | <0.4-2m (depending on range) |
| Accuracy | ±0.3%× maximum range |
| Indication resolution | 1mm |

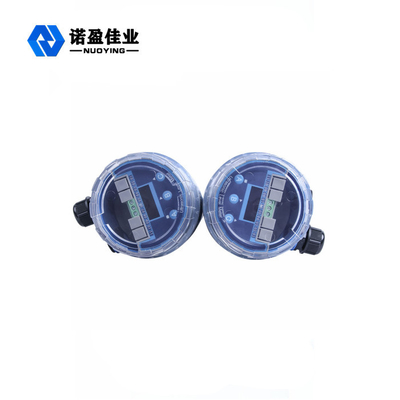

| Indication | OLED |
| Power | 18~28VDC, 12~24VDC, 220VAC |
| Power consumption | <1.5W |
| Output (optional) | RS485 |
| Operating temperature | normal |
| Operating pressure | normal |
| Material | ABS,PP |
| Dimension | Φ92mm×198mm×M60,Φ92mm×270mm×DN80 |
| Ingress Protection | IP65(higher ingress protection customizable ) |
Rs485 Ultrasonic Water Tank Level Sensor Ultrasonic Solid Liquid Level Transmitter Features:
1.Reasonable design, excellent performance, low unit price, simple structure and high installation convenience;
2.Ultrasonic uses a small-angle probe with high transmit power and high sensitivity；
3.Arbitrary point upper and lower limit setting, alarm setting, can be used for continuous liquid measurement and liquid level control.
