Liquid (no Stirring, Bubble, Volatilization, Etc.)
Measuring Accuracy:
0.05%~0.1%F.S
Power Supply:
24VDC
Process Connection:
Thread, Flange (optional)
Medium Temperature:
Fork Body:-40~+180℃; Instrument: -40~+80℃
Process Pressure:
-0.1~0.1MPa
Signal Output:
4...20mA/HART/RS485/Modbus...
Display:
LCD
Measuring Range:
0~20m(integrated)，0~40m(split)
Packaging Details:
40*30*30cm
Supply Ability:
1000pcs per month
Product Description
High Performance Non-contact Water Tank Meter Ultrasonic Sensors Distance 5 Meter Wireless Liquid Fuel Diesel

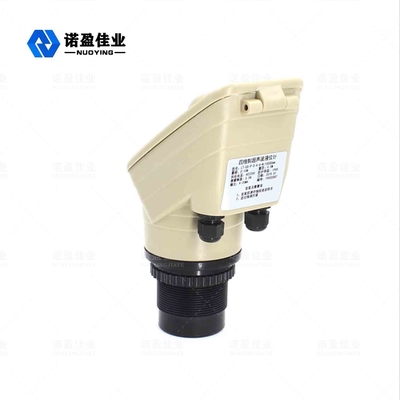

Nuoying NYCSUL-501 Ultrasonic Water Liquid Level MeterOverview
Products Description
NYCSUL-501 Ultrasonic Level Switch Working Principle
The ultrasonic level switch is installed on the top of the container. Under the control of the electronic unit, the probe sends a beam of ultrasonic pulse to the measured object. The sound wave is reflected by the surface of the object, and part of the reflected echo is received by the probe and converted into an electrical signal. The change of the level is determined according to the time difference from ultrasonic re transmission to re reception and the known sound speed. The electronic device processes the microwave signal and finally converts it into an electrical signal related to the level.
NYCSUL-501 Ultrasonic Level Switch Design Feature
1.Reasonable design, excellent performance, simple structure and convenient installation.
2.The ultrasonic adopts a small angle probe, which has high transmission power and sensitivity.
3.The upper and lower limit settings and alarm settings at any point can be used for continuous liquid measurement and liquid level control.
